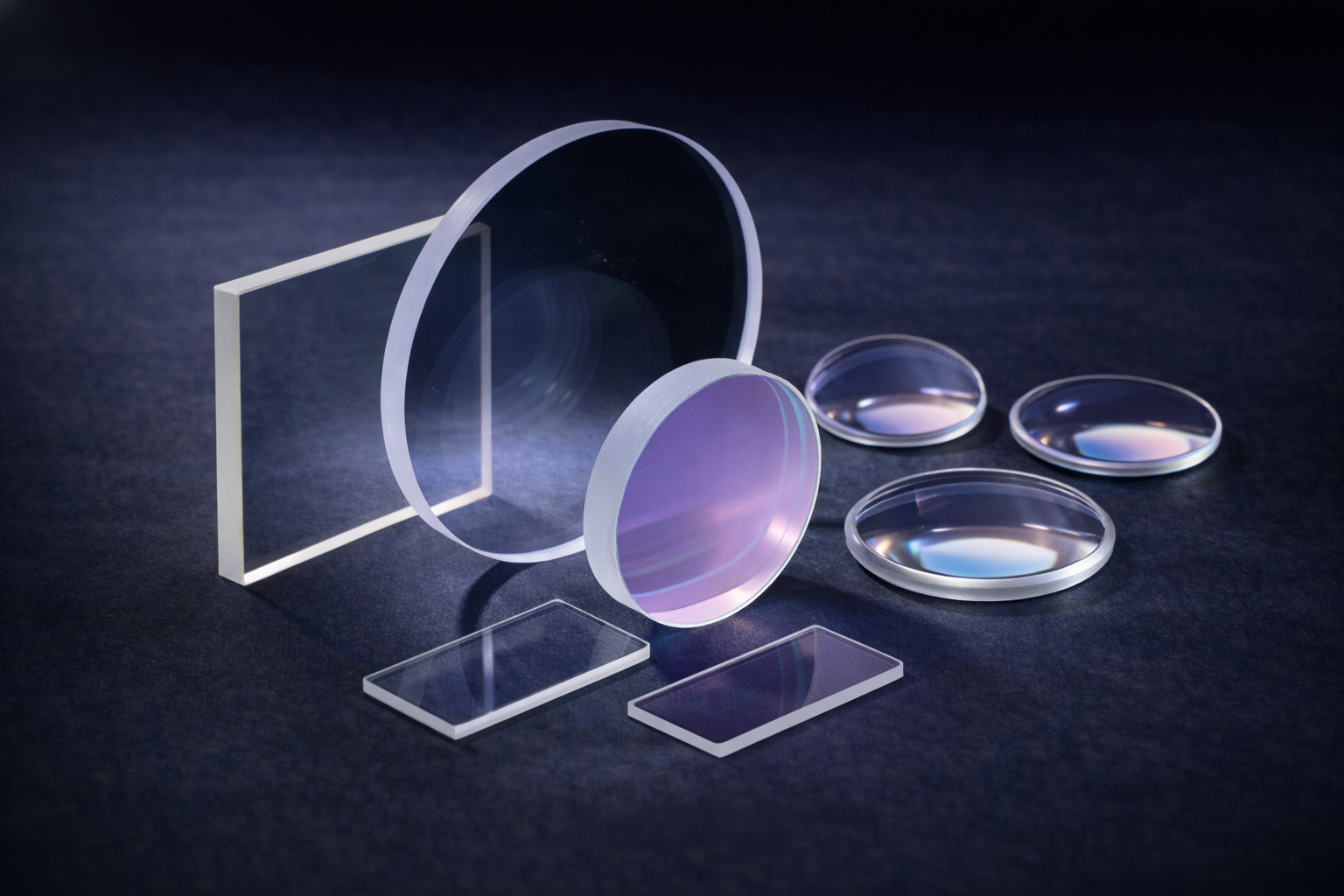

Physix manufactures high-precision plano optics designed for protection, beam transmission and optical system integration. Our optical windows and flat substrates are produced from premium optical glass and crystal materials, ensuring exceptional surface quality, flatness and transmission performance.
From simple protective windows to highly specified substrates with advanced coatings, we supply reliable solutions for industrial, scientific and high-power laser applications.
| Parameter | Specification | Notes |
|---|---|---|
| Diameter / Size | 2 mm – 300 mm | Larger sizes on request |
| Thickness | 0.5 mm – 50 mm | Custom thickness available |
| Surface Flatness | down to λ/10 | @ 632.8 nm |
| Surface Defect Rate | down to 10-5 S/D | MIL-PRF-13830B |
| Parallelism | < 10 arcsec | Tighter tolerances possible |
| Clear Aperture | > 90% | Based on part diameter |
| Edge Finish | Ground / Polished / Beveled | According to drawing |
| Coatings | AR / HR / Custom | Single or multi-layer coatings |
| Wavelength Range | UV – VIS – IR | Depends on material |
| Material | Schott, Ohara, Corning, Hoya, CDGM | Based on availability |
Plano optics are widely used in:
They serve as protective windows, sealing elements, beam split substrates, or optical carriers within complex assemblies.

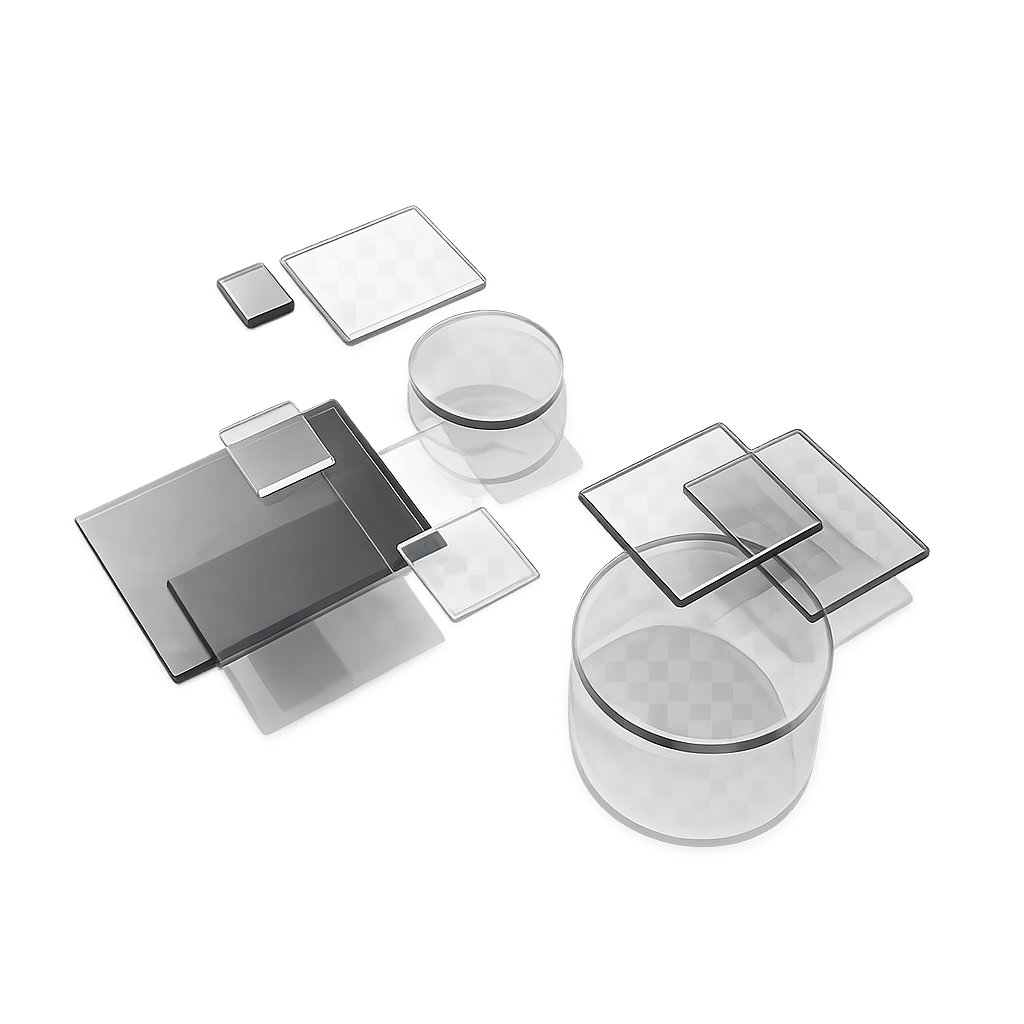

Plano optics are flat optical components designed to transmit, reflect, filter or modify light within an optical system. Depending on the application, their performance can be determined by factors such as material, surface quality, flatness, parallelism and optical coating.
Physix supplies plano optical components for applications ranging from imaging and sensing to laser systems and other high-performance optical equipment.
The performance of plano optics depends on more than the geometry of the component. Material selection and optical coatings can have a significant impact on transmission, reflection and overall system performance.
Physix provides plano optical components in a range of optical materials and can combine them with application-specific coatings for different wavelength ranges.
Tell us about your optical system, application or required specifications. Our specialists can help you select or develop the right plano optical components.
Discuss Your ApplicationPlano optics are flat optical components used to transmit, reflect, filter or modify light within an optical system. Common examples include optical windows, mirrors, filters, beamsplitters and waveplates.
Physix offers a range of plano optics, including optical windows, filters, mirrors, beamsplitters and waveplates. Depending on your application, components can be supplied in different optical materials, dimensions and with application-specific optical coatings.
Yes. Physix can supply custom plano optics based on your drawings, specifications and application requirements. Parameters such as dimensions, material, surface quality, flatness, parallelism and optical coating can be tailored to your optical system.
The appropriate material depends on factors such as wavelength range, transmission requirements, environmental conditions and the application. Physix can help select a suitable optical material based on your system requirements.
Yes. Plano optics can be supplied with optical coatings to achieve specific transmission, reflection or spectral properties. The appropriate coating depends on the component, wavelength range and intended application.
Important parameters include the optical material, dimensions, surface quality, surface flatness, parallelism, wavelength range and coating requirements. The required specifications depend on how the plano optic is used within your optical system.
Plano optics are used in a wide range of optical systems, including imaging, laser systems, optical measurement, medical technology, industrial equipment, defence applications and scientific instrumentation.
Send us your drawing, specifications or application requirements. Our specialists can review your requirements and help determine the appropriate material, tolerances and optical coating for your plano optical component.
